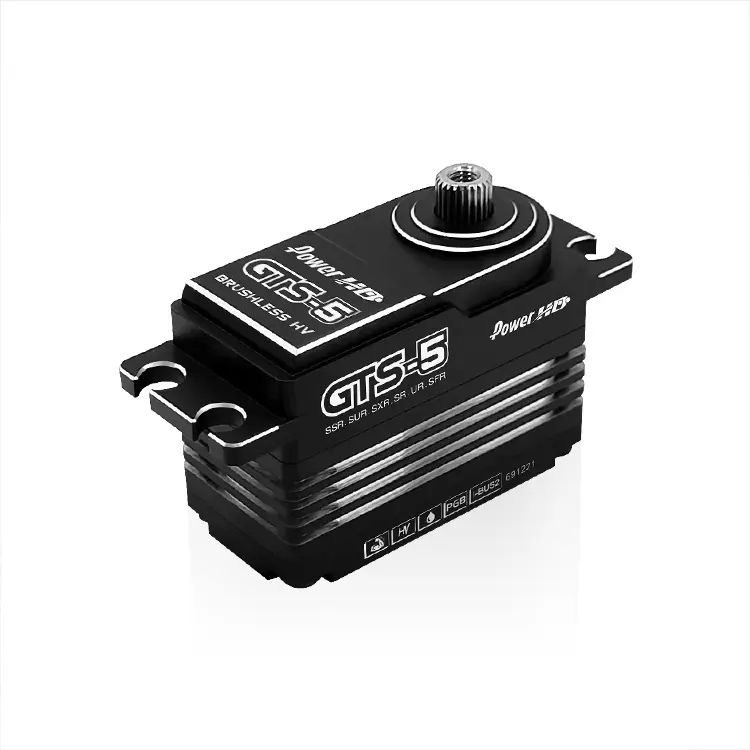

Servo Power Hd GTS 5 Low Prof Hv Mg Brushless Alu Case (50kg/0.08s)

Description

PowerHD GTS-5 HV CNC Brushless Digital Servo 50.0KG/0.08sec@8.4V
*Support FLYSKY radio's i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of brands' radio
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
*four-pole brushless motor
high performance/ long Life-span/ heat-resistant/ faster response

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) ©¦ 0.09 sec (7.4V)
Speed: 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor

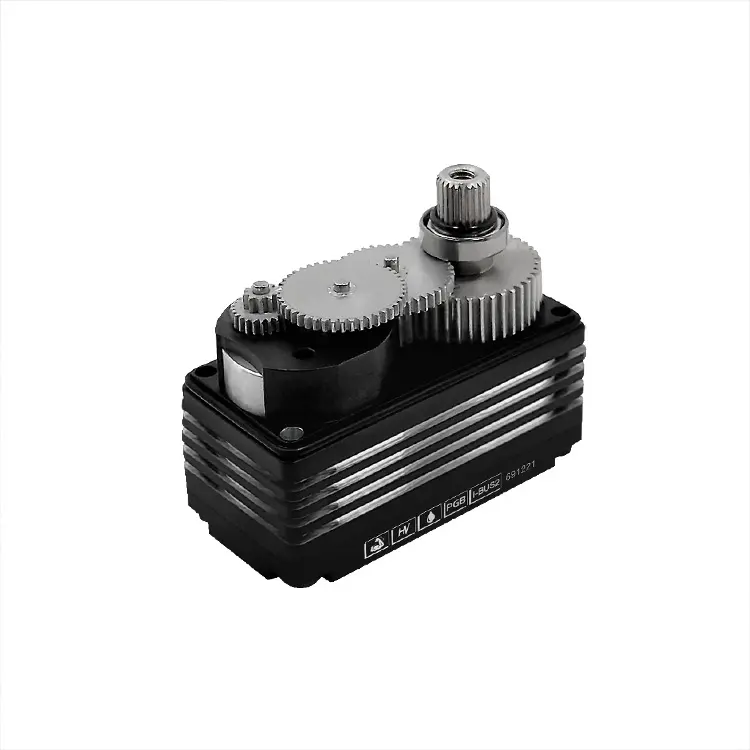

Gear Type: 7075+Steel
Operating Temperature: -20~60°C
Working frequence: 1520 / 1666hz
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
Max current: 7.5A

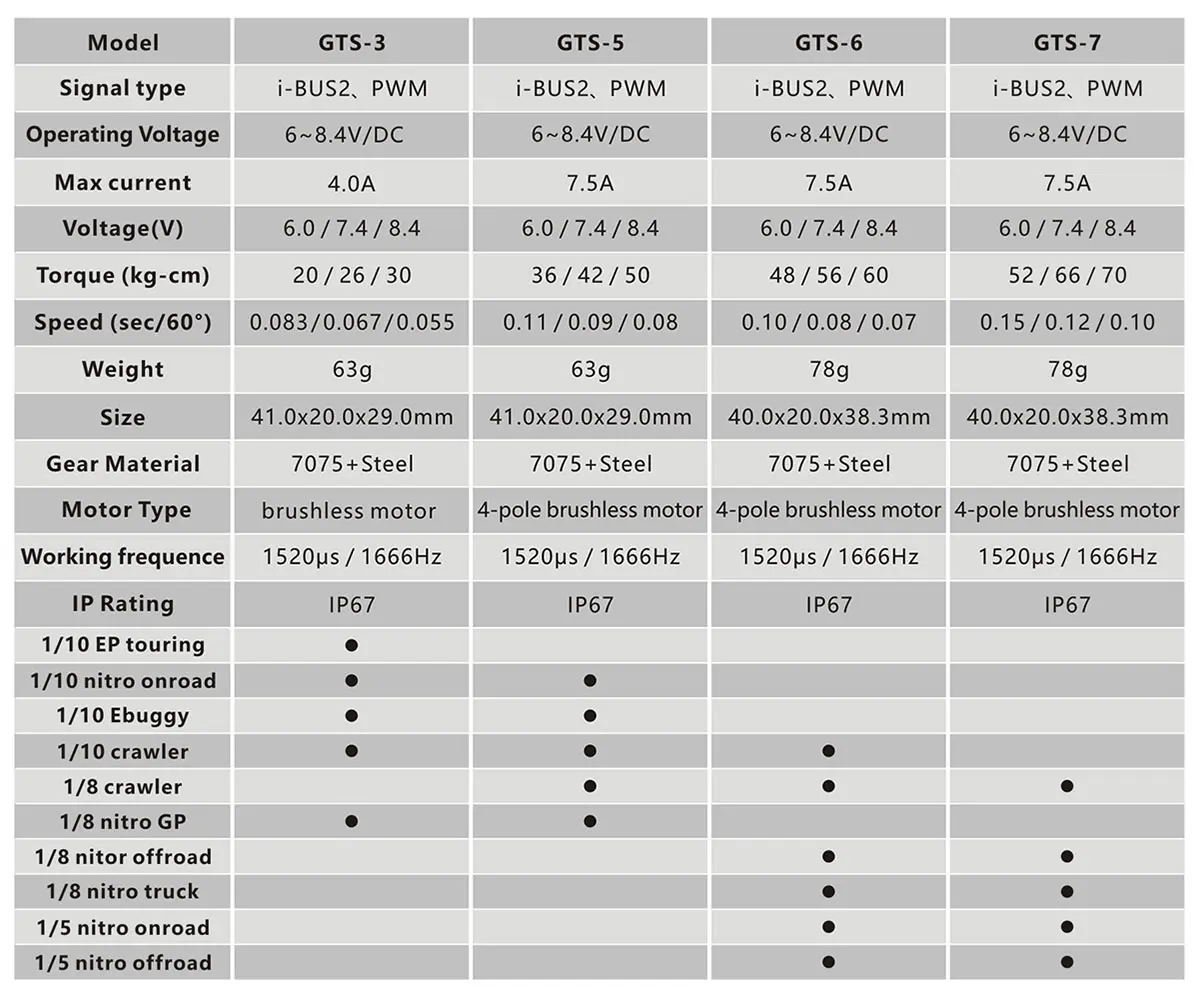

Technical Data

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) │ 0.09 sec (7.4V) │ 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Max current: 7.5A
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) │ 0.09 sec (7.4V) │ 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Max current: 7.5A
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)

Kit Contents

Required For Operation
