Kyosho Speed House Hor Hanging-on Racer Brushless Combo Set

Description

Description

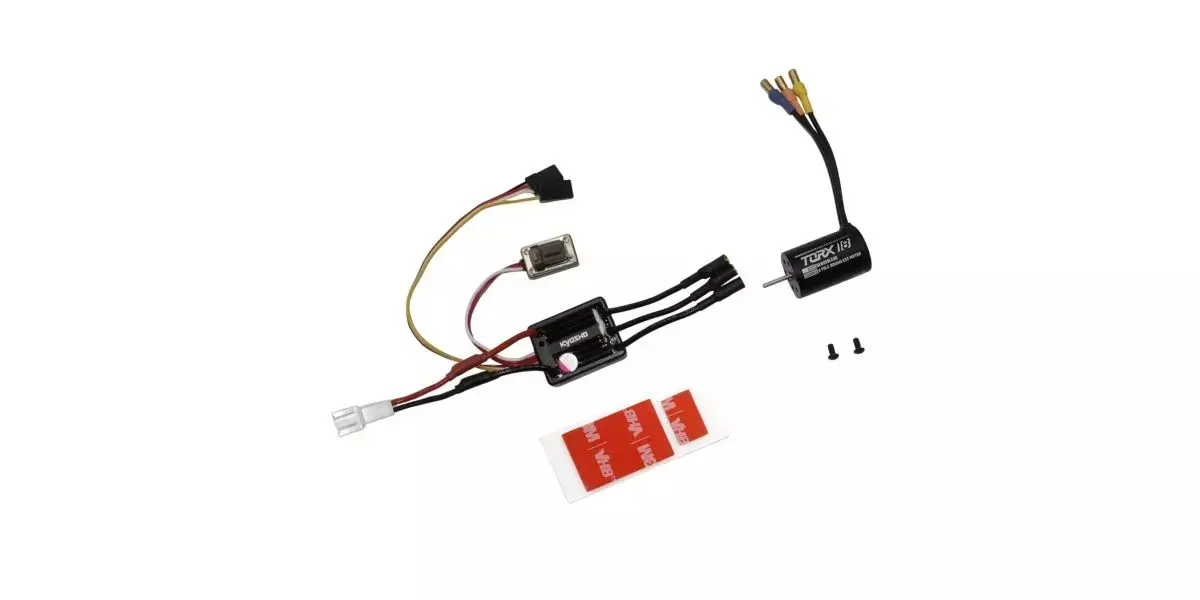

Brushless motor set for the Hang-On Racer series.
The high torque of the brushless motor helps keep the bike stable when accelerating out of corners, improving handling while increasing top speed to 1.4 times that of the standard brushed motor supplied with the kit.
*For the gearbox, we recommend using the GPW3C reinforced pinion gear (1.89 mm / screw included / 3 pcs) together with the GP109B spur gear/pinion gear set (Hang-On Racer).

*These technical specifications represent the performance of the ESC and motor separately.
They may not apply to all suspension-equipped racing models.

ESC:
KYOSHO SPEED HOUSE BRAINZ 18

Input voltage: 6- to 9-cell Ni-MH batteries (7.2 V to 10.8 V) and 2S to 3S LiPo batteries (7.4 V to 11.1 V).
Dimensions: 33.4 mm (L) x 26.8 mm (W) x 15.1 mm (H).
Maximum continuous current: 30 A.
BEC output: 6 V / 2 A.
Weight: 38.5 g
Compatible with 2030 and 2435 motors. Recommended motor size: 270 to 390 class (2S LiPo ≤ 8000 KV / 3S LiPo ≤ 4500 KV).
Protection functions: Low-voltage cut-off / Thermal protection.

Motor
KYOSHO SPEED HOUSE TORX 18

KV rating: 5,000 rpm/V;
Input voltage: 6- to 9-cell Ni-MH batteries (7.2 V to 10.8 V) and 2S to 3S LiPo batteries (7.4 V to 11.1 V);
Weight: 42 g
